FLIR G306 OGI Cameras for Sulfur Hexafluoride (SF₆)
Improve substation inspection with the FLIR G306â„¢ for sulfur hexafluoride.

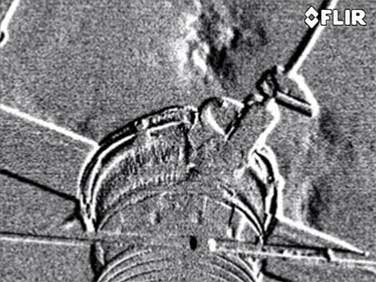

The FLIR G306 is an innovative Optical Gas Imaging (OGI) camera used to visualize sulfur hexafluoride (SF₆), ammonia (NH₃), ethylene (Câ‚‚Hâ‚„), and other industrial gas leaks in various environments.Â
SF₆ is a potent greenhouse gas with a global warming potential that’s more than 23,000 times greater than C0â‚‚ over a 100-year period. SF₆ is commonly used within the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers.Â

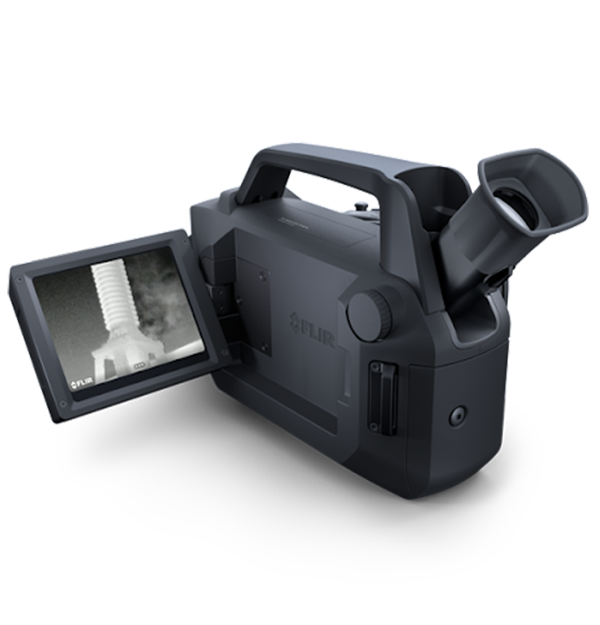

Comfortably operate and interact with your portable G306, thanks to a rotating 4 inch LCD touchscreen that allows you view targets from a safe distance in any direction, in complex systems including electric utility transmission facilities and industrial plants. You can quickly scan substations in an efficient manner for harmful gas leaks without shutting down industrial operations.
Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service.
Get In Touch With Our Sales Expert
The FLIR G306 accurately measures temperatures from -40°C to 500°C and FLIR’s patented High-Sensitivity Mode (HSM) makes SF₆ and other industrial gas leaks stand out more clearly.
Fixed FLIR G306 Optical Gas Imaging for sulfur hexafluoride gas leak detection
Key Features
| Parameters | G306 |
|---|---|
| IR Resolution | 320 × 240 |
| Spectral Range | 10.3 to 10.7 µm |
| Detector | Focal plane array (FPA), cooled QWIP |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Visual Resolution | 3.2 Mpixels |
| Thermal Sensitivity | <15 mK @ +30°C |
| Lens Options | 14.5° × 10.8° (38 mm) 24° × 18° (23 mm) |
| Focus | Autofocus, Manual |
| Zoom | 1–8× continuous, digital zoom |
| Digital image enhancement | High sensitivity mode (HSM), Noise reduction filter |
| Temperature Range | −40°C to 500°C |
| Accuracy | ±1°C for temperature range upto 100°C
or ±2% of reading for >+100°C |
| Viewfinder | Built-in, tiltable OLED, 800 × 480 pixels |
| Spotmeter | 10 |
| Area | 5 boxes with max./min./average |
| Delta T | Yes |
| Measurement Correction | Reflected temperature, distance, atmospheric transmission, humidity, external optics |
| Gas Sensitivity | SF₆: <0.3 ppm x m (ΔT = 10°C, Distance = 1 m) |
| Storage Media | Removable SD memory card |
| iGPS, Laser, blue tooth, Wi-Fi, USB, HDMI | Yes |
| Voice/Text/Sketch | Yes |
| Weight | 3 kg |
| Operating Temperature | −20°C to +50°C |
| Encapsulation | IP 54 (IEC 60529) |
| Battery and operating time | Rechargeable Li-ion, >2 hours @ 25°C |
| EMC |
ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 55032 (emission) EN 55035 (immunity) EN 61000-4-8 Level 5 (magnetic field) EN 61000-6-2, Immunity Industrial Environment FCC 47 CFR part 15 B, class B (emission) ICES-003 |
| Non-radiometric / Radiometric streaming | H.264, MPEG4 etc. / Over UVC |
| Warranty | 2 Years |
