K1 and K2
Situational Awareness Camera for Firefighting

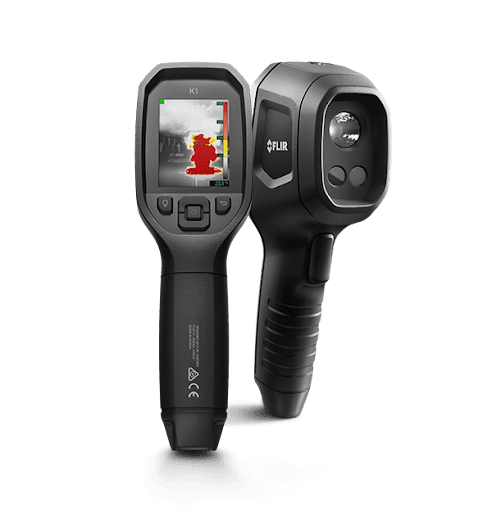

The FLIR K1 is a rugged, compact thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke. With a bright, integrated flashlight, the FLIR K1 illuminates the scene to help the user steer and manage the crew more effectively.
It also displays 160 × 120 pixel thermal images that help users gain additional situation awareness that is not possible with the naked eye.
The water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.
Gather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting.
Get In Touch With Our Sales Expert

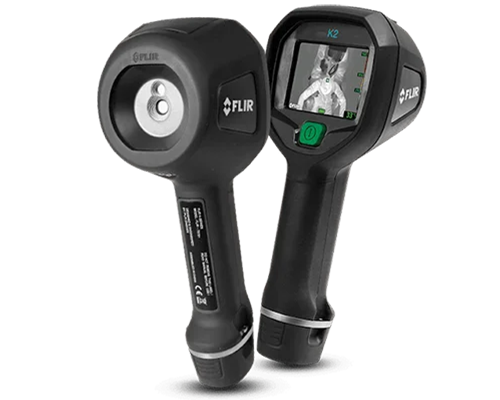

FLIR K2
Compact TIC with MSX®
FLIR is on a mission to make high quality thermal imaging cameras standard issue equipment for every member of a fire crew. The FLIR K2 makes that possible by providing capability, ruggedness, and reliability at an affordable price. With features such as Multi-Spectral Dynamic Imaging (MSX®), easy-to-use buttons, and operability in temperatures up to 500°F, the K2 is a small investment that pays big dividends–saving lives, protecting property, and ensuring firefighter safety.
The K2 makes high-quality thermal imaging more accessible so more first responders can help save lives and protect property. Offers simplified, single-button controls that can be used with heavy gloves.
The K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to 500°F (3 minutes).
Key Features
| Parameters | K1 | K2 |
|---|---|---|
| Thermal Resolution | 160 x 120 | 160 x 120 |
| NETD (Thermal Sensitivity) | <100mK @ 30°C | |
| Spatial Resolution (IFOV) | 7.6 mrad/pixel | 6.22 mrad/pixel |
| Detector Pitch | 12 µm | |
| Lens options | 57° x 44° | 47° x 35° |
| Frame Rate / Image Freq | 8.7 Hz | 9 Hz |
| Digital Zoom | No | |
| Focus Type | Fixed | |
| Image modes (only in case of K-series) | Multi Spectral Dynamic Imaging (MSX) |
|
| Automatic hot detection (only in case of K-series) | No | Yes |
| Temperature Range | –10° to 400°C | –20° to 500°C |
| Visual Camera Resolution | 2 MP | 0.3 MP |
| Display & Touchscreen | 2.4", 320 × 240 pixels TFT display | 3”, 320 × 240 pixels LCD, backlit |
| Storage | Internal memory (3.9 GB) | No |
| Voice, Text, Sketch inputs | No | |
| Software | Image post processing and reporting in FLIR Tools | |
| Isotherm | Yes | |
| Distance and area measurement | No | |
| USB | Yes | |
| Battery operation time | 5.5 hours | 4 hours x 2 |
| Operating Temperature |
Continuous: –10°C to +45°C
Up to 10 min: –10°C to +90°C Up to 2 min: –10°C to +115°C |
Continuous: –10°C to +55°C
Up to 15 min: +85°C Up to 10 min: +150°C Up to 3 min: +260°C |
| Weight (incl. battery) | 0.41 kg | 0.70 kg |
| Encapsulation / shock / vibration | IP 67 / 25g / 2g | |
| Material |
|
|
| Drop Test | 2 m | |
| NFPA Compliance (only in case of K-series) | No | |
| Warranty | 2 years on battery, 10 years on detector, 5 years on all other components | |
