Kx5 Series
FLIR Kx5 Series
High-Performance TIC (3-Button)
Firefighters need thermal imaging cameras (TICs) that are designed to be rugged and easy to use without sacrificing clarity or performance. FLIR Kx5-Series TICs offer our best image quality and sharpness that’s clear to see in low contrast scenes. This means firefighters can improve their situational awareness and depth perception, and easily navigate through smoky buildings for a more efficient search and rescue and location of the fire scene. Â
Kx5 TICs provide outstanding thermal image clarity at high temperatures so you can safely navigate fire scenes. From the K45 to the NFPA® 1801-2021-compliant K65, Flir TICs are designed to withstand the toughest firefighting conditions, whether it’s a two-meter drop, heavy water spray, or blazing hot temperatures.
Kx5 thermal cameras help incident commanders with their strategic plan of attack, visualizing the scene and locating dangerous hot spots so they can make better decisions when directing resources.
Get In Touch With Our Sales Expert

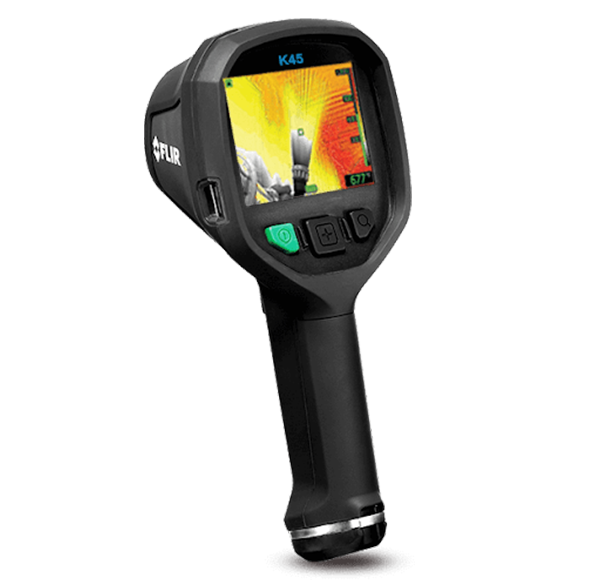

FLIR K45
The FLIR K45 is an affordable TIC that gives firefighters a clear view into the darkest, smokiest environments.
It displays sharp, 240 × 180 pixel thermal images on a bright 4″ screen, to help firefighters navigate easier, make accurate decisions, and find victims faster. Plus the K45 features FSX® Flexible Scene Enhancement, which intensifies structural and textural details in thermal images.
The maintenance-free sensor produces detail-rich thermal images to help you navigate easier in smokey conditions.
The K45 withstands a 2-meter drop onto concrete, is water resistant (IP67), and fully operational up to 500°F (5 minutes)

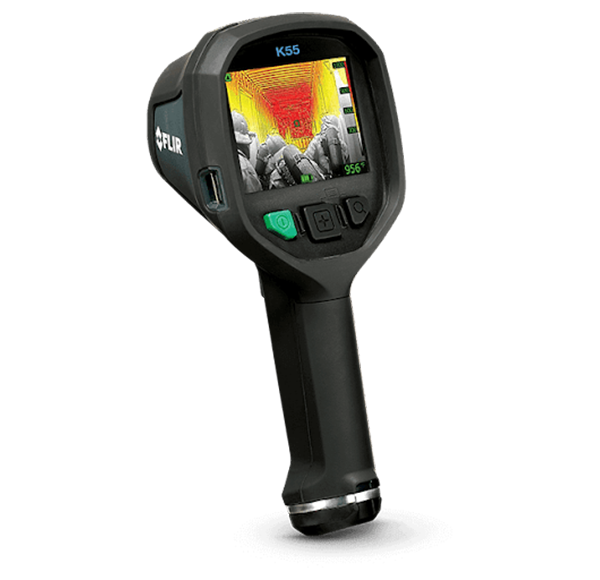

FLIR K55
With a FLIR K55 TIC in hand, you can attack fires more strategically, maneuver through smoke more easily, and save lives. The K55 displays crisp thermal images on a bright LCD, helping you navigate better and expedite critical decisions.
The 320 × 240 pixel IR sensor and FSX® Flexible Scene Enhancement produce detail-rich imagery at a 60 Hz frame rate that keeps up with the action.
Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.
K55 cameras are protected by FLIR’s 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.

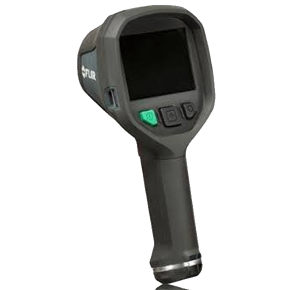

FLIR K65
The Flir K65 is the advanced, feature-rich thermal imaging camera you need when NFPA compliance is a must. The K65 is designed to be fully compliant with the National Fire Protection Association® (NFPA) 1801-2021 Standard for Thermal Imagers.With fully sealed connectors and a secured battery, the K65 is designed to be fully compliant with the NFPA 1801-2021 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting.
The FLIR K65 has an intuitive interface with a design that makes it easy to control even with a gloved hand. The crisp and clear image helps you to navigate through smoke and to make quick and accurate decisions.
The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smoky conditions.
Key Features
| Parameters | K45 | K55 | K65 |
|---|---|---|---|
| Thermal Resolution | 240 x 180 | 320 x 240 | |
| NETD (Thermal Sensitivity) | <40mK @ 30°C | <30mK @ 30°C | |
| Spatial Resolution (IFOV) | 3.6 mrad/pixel | 2.8 mrad/pixel | |
| Detector Pitch | 25 µm | ||
| Lens options | 51° x 38° | ||
| Frame Rate / Image Freq | 60 Hz | ||
| Digital Zoom | 2x | ||
| Focus Type | Fixed | ||
| Image modes (only in case of K-series) |
|
|
|
| Automatic hot detection (only in case of K-series) | Yes (the hottest 20% of the scene is colorized) | ||
| Temperature Range | -20° to 650°C | ||
| Visual Camera Resolution | No | ||
| Display & Touchscreen | 4", 320 x 240 pixels LCD, backlit | ||
| Contrast optimization | Digital image enhancement using FSX | ||
| Storage | Internal flash memory, 200 files | ||
| Voice, Text, Sketch inputs | No | ||
| Software | No | ||
| Isotherm | Yes | Yes, according to NFPA | |
| Distance and area measurement | No | ||
| USB | Yes | ||
| Battery operation time | 4 hours x 2 | ||
| Operating Temperature |
Continuous: -20°C to +60°C Up to 15 minutes: +150°C Up to 5 minutes: +260°C |
||
| Weight (incl. battery) | 1.1 kg | ||
| Encapsulation / shock / vibration | IP 67 / 25g / 2g | ||
| Material |
|
||
| Drop Test | 2 m | ||
| NFPA Compliance (only in case of K-series) | No |
NFPA 1801-2021 Ex-certified according to ANSI/UL 121201-2017 and meets Class I Division 2 Groups C and D, Class II Division 2 Groups F and G, Temperature Code T4/T135°C |
|
| Warranty | 2 years on battery, 10 years on detector, 5 years on all other components | ||
