FLIR Kx3-Series
High-Performance TIC for Firefighting
Firefighters often need a low-cost, easy-to-use TIC that doesn’t sacrifice clarity and performance you need—and the Flir Kx3-Series is up to the challenge. These Flir TICS offer even better image quality and sharpness, significantly noticed in low contrast scenes. This means firefighters can improve their situational awareness and depth perception, and easily navigate through smoky buildings for a more efficient search and rescue and location of the fire scene.
Kx3 thermal cameras help incident commanders with their strategic plan of attack, visualizing the scene and locating dangerous hot spots so they can make better decisions when directing resources.
Get In Touch With Our Sales Expert
FLIR K33
The FLIR K33 thermal imaging camera with new, enhanced imaging is the solution fire departments need to ensure every firefighter has a TIC in the field. This low-cost, easy-to-use camera features FSX® Flexible Scene Enhancement for intensifying structural and textural details in thermal images. The enhanced perspective and orientation helps improve situational awareness and give firefighters a greater sense of confidence and safety.
One glove-friendly button starts the K33 in TI-Basic mode, while pulling and holding the trigger freezes the image.
The K33’s affordable price helps fire and rescue departments get essential tools into the hands of those who could use those most.

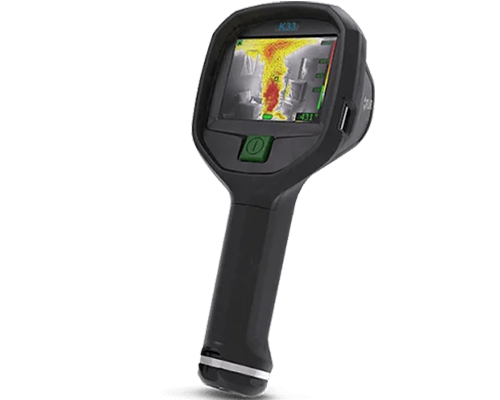

FLIR K53
The FLIR K53 offers the reliable clarity and performance firefighters need to work quickly and safely in the smokiest environments. This TIC features FSX® Flexible Scene Enhancement, which intensifies structural and textural details in thermal images. Thanks to the K53’s enhanced perspective and orientation, firefighters gain better situational awareness as well as a much greater sense of confidence and safety.
With K53 firefighters can improve their situational awareness and depth perception, and easily navigate through smoky buildings for a more efficient search and rescue and location of the fire scene.
320 × 240 resolution, a 60 Hz frame rate, and a bright 4″ LCD all help you see more in smoky conditions.
Key Features
| Parameter | K33 | K53 |
|---|---|---|
| Thermal Resolution | 240 x 180 | 320 x 240 |
| NETD (Thermal Sensitivity) | <40 mK @ 30°C | <30 mK @ 30°C |
| Spatial Resolution (IFOV) | 3.6 mrad/pixel | 2.8 mrad/pixel |
| Detector Pitch | 25 µm | 25 µm |
| Lens options | 51° x 38° | |
| Frame Rate | 60 Hz | |
| Digital Zoom | No | |
| Focus Type | Fixed | |
| Image Modes | Basic Mode | |
| Digital Image Enhancement | Digital image enhancement using FSX | |
| Automatic Hot Detection | No | |
| Temperature Range | –20° to 650°C | |
| Visual Camera | No | |
| Display | 4”, 320 × 240 pixels LCD | |
| Storage | No | Internal flash (200 files) |
| Software | No | |
| Isotherm | Yes | |
| Distance/Area Measure | No | |
| USB | Yes | |
| Battery life | 4 hours x 2 | |
| Operating Temperature | -20°C to +260°C (Max) | |
| Weight (incl. battery) | 1.1 kg | |
| Encapsulation | IP 67 | |
| Material | Flame-resistant alloys | |
| Drop Test | 2 m | |
| NFPA Compliance | No | |
| Warranty | Up to 10 Years | |
