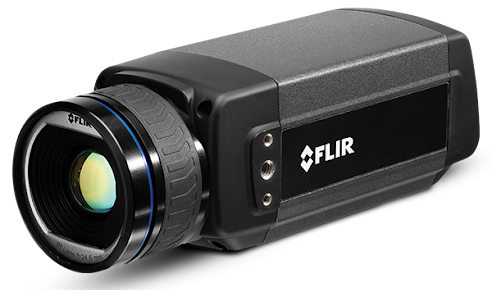

FLIR A615 Thermal Cameras
The FLIR A615 is an easy-to-control, affordable, and compact thermal imaging camera for condition monitoring, process control/quality assurance and fire prevention.
It has the widest temperature measuring range making it suitable for a wide variety of applications, from cryogenic to furnace. This camera can be fully controlled by a PC, and is Plug and Play with third-party machine vision software such as National Instruments, Cognex, Matrox, MVtec etc.
Get In Touch With Our Sales Expert
The FLIR A615 features a 640 x 480 pixel micro-bolometer that detects temperature differences as small as 50 mK, for accuracy at longer distances.
Key Features
| Parameters | Specification |
|---|---|
| IR Resolution | 640 x 480 pixels |
| Thermal Sensitivity | < 0.05°C (50 mK) @ +30°C |
| Image Frequency | 50 Hz (100/200 Hz with windowing) |
| Lens options | 7°, 15°, 25°, 45°, 80° |
| Emissivity, temperature & optics correction | Available on-board |
| Field of View | 48° x 37° |
| Distance to Spot Size ratio | 5230:1 |
| Focus | Automatic or manual (built in motor) |
| Temperature Range | -40°C to 2000°C |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Ethernet and USB Protocols | TCP, UDP, SNMP, RTSP, RTP, HTTP, ICMP, IGMP, FTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP |
| Digital I/O | 2 DI, 2 DO (opto-isolated) |
| Power | POE powered / 12 or 24 V DC external power |
| Operating Temperature | -15 to 50°C |
| Encapsulation | IEC 60529, IP30 |
| Image streaming | GigE Vision and GenICam |
| Warranty | 2 years on camera, 10 years on detector |
